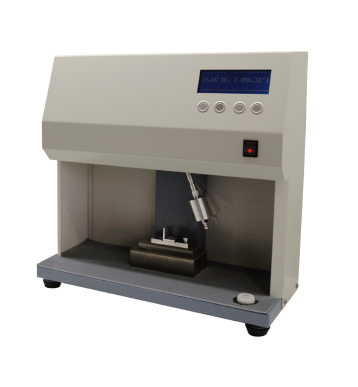

Internal Bond Tester

  •   Novilog
  •   Made in Europe

To measure the internal bonding of paper and board

  Download the leaflet
  • 080102
  • TAPPI T569
  • TAPPI T833
  • Product description

    In order to minimize variations in the test results, the sample preparation must be done with a maximum care, to achieve the most homogenous results. Optionally, the equipment can be completed with the preparation station (IBP-5M or IBP-5A). By means of the sample preparation station, 5 samples must be prepared. Now, a sample must be placed in the test position. The Test button is pushed (in this moment, the sample holder is fixed pneumatically). The pendulum is released automatically, minimizing this way the possible
    difference between operators. Once the sample is tested, the pendulum returns to the initial position. The display will show the result achieved in the last test and the mean value and standard deviation of the test series. To carry out a new test, the tested sample holder is removed, placing a new one. The test process will be repeated again.

    Technical specifications

    General data
    • Selection of work units : ft.lb/sq.in, mJ/sq.in and J/m2
    • Full statistics functions over 20 values.
    • Three measure ranges with exchangeable pendulums.
    • Reading resolution of 0,001 ft.lb (accuracy)
    • Steel robust frame designed to avoid energy losses during test.
    • Automatic equipment calibration (Automatic zero).
    • Automatic pendulum release. To avoid differences between operators.
    • Pneumatic fixing of the sample holder and returning of the pendulum to initial position.
    • CE mark
    Log in
    Electric : 220/110 V, 50/60 Hz.
    Compressed air : 600 KPa
    Weight and dimensions Packaging
    65 Kg
    730 x 540 x 750 mm (WxLxH)
    Product weight and dimensions
    30 Kg
    480 x 220 x 500 mm (WxLxH)
    Scope of delivery
    • IBT apparatus with one pendulum
    • Operating manual
