Vertical laboratory flutter

  •   Made in Europe

Device for the preparation of corrugated samples for CMT and CCT tests.

  Download the leaflet
  • 100613
  • ISO 7263
  • DIN-EN ISO 7263
  • TAPPI T809
  • SCAN P27
  • PAPTAC D29
  • ....
  • Product description

    Test description:

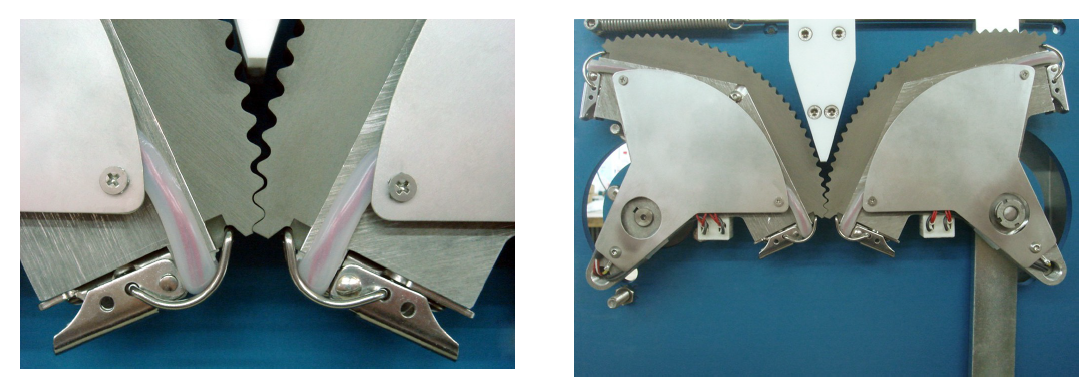

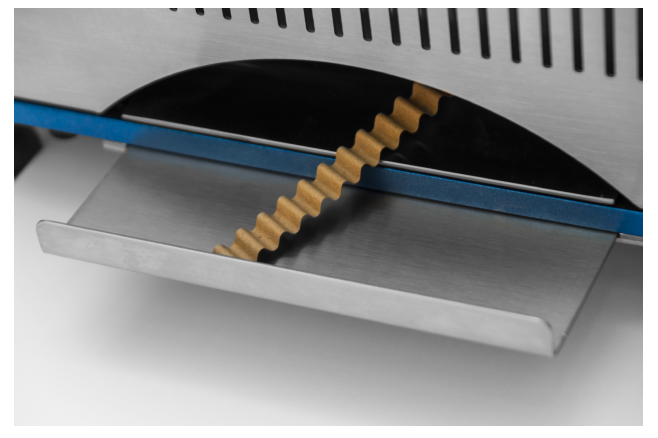

    A sample of 6 x ½” (152 x 12.7 mm) is prepared by means of a sample punch. It is inserted into the apparatus inlet at the top of the instrument. When the start button is pressed, it is introduced and molded by the heated fluters rolls. The sample is then ejected from below and can be taken out. The fluters rolls return to their initial position. It is important that the sample has the correct width of 12.7 mm.

    Technical specifications

    General data
    • Precise temperature control and regulation.
    • Power consumption: only 200 W.
    • New heating system for low heat loss.
    • Programmable temperature in digital display: 175 ± 5ºC.
    • Sample preparation system included.
    Log in
    110 – 220v, 50 – 60Hz
    Weight and dimensions Packaging
    30 Kg
    580 x 380 x 380 mm (WxLxH)
    Product weight and dimensions
    20 Kg
    480 x 200 x 360 mm (WxLxH)
    Scope of delivery
    • Concora Medium Fluter
    • 3rd hand with stripping block
    • Connection cable
    • Operating manual
